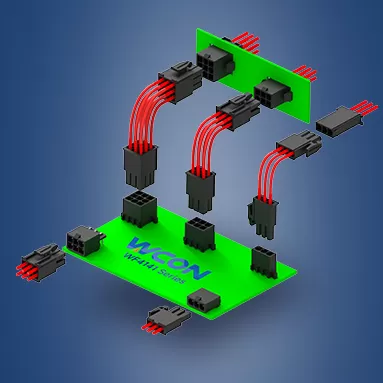

The WF4141 Series is a 4.14mm pitch wire-to-board and wire-to-wire connector. Featuring a dual-contact terminal design, it ensures enhanced signal stability and integrity. With both horizontal and vertical mounting orientations, it adapts flexibly to high-density PCB layouts in industrial controls, automotive electronics, and medical equipment, providing vibration resistance and secure mating in harsh environments.





Product  Features



Polarization keying in male/female housings prevents mis-mating.

Positive latch ensures high-vibration resistant mating and prevents dynamic stress-induced unmating

Versatile mating configurations accommodate diverse mating requirements

Dual-point contacts in crimp-style terminals ensure enhanced signal integrity through parallel contact paths.



Parameters



Rated Current: 7.0 A

Rated Voltage: 600 V AC/DC

Contact Resistance: 20 mΩ max

Insulation Resistance: 1000 MΩ min

Withstand Voltage: 1500 V AC

Operating Temperature: -55°C to +105°C (including temperature rise)



Standards



IEC 60512

GB/T 5095



Applications



Industrial Control

Automotive Electronics

Medical Equipment
