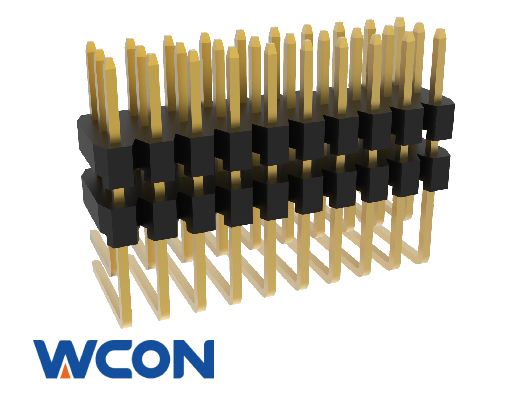

1220-23XXXXRXXXC001
Pin Header Connector,Horizontal,Through Hole,Three Row,Double Plastic,Concave Bending,2.00mm Height,Gold or Tin over nickel,Black,Type-1 or Type-2
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 200 V/AC | Operation Temperature | -40°C - +125°C | |
| Rated Current | 2 AMP | Contact Material | Brass | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PA9T | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Tube,Tray | |
RoHS
Compliant
REACH
Compliant
-
