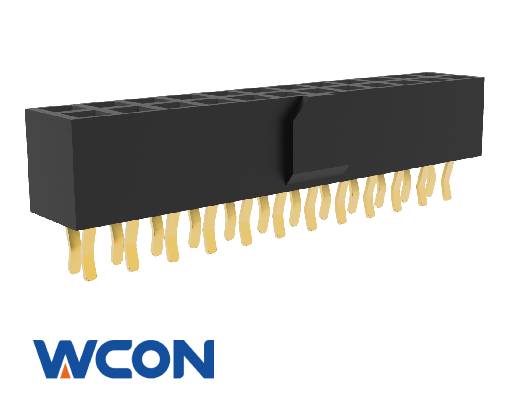

2243N-2XXCXXCUNX2
Female Header Connector,Vertical,Splint,Dual Row,4.30mm Height,Gold or Sn over nickel,Black,Type-1 or Type-2
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 200 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 2 AMP | Contact Material | Phosphor Bronze | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PA9T | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Tube | |
RoHS
Compliant
REACH
Compliant
-
