2344-2XXMG0CUNR2

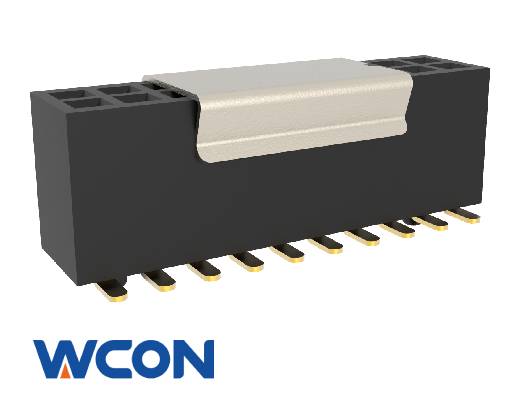

Female Header Connector,Vertical,Surface Mount,Dual Row,4.30mm Height,Gold over nickel,Black, Type-1 or Type-2
Inquiry Now Register
/assets/upload/2024-01-23/2344-2XXMXXCUNX2.jpg/webp
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 100 V/AC Operation Temperature -40°C - +105°C
Rated Current 1 AMP Contact Material Phosphor Bronze
Contact Resistance 20 mΩ Max Insulator Material PA9T
Insulation Resistance 1000 MΩ Min Contact Plating Au&Sn
Withstand Voltage 500 V/AC Packaging Tube,Reel

RoHS

Compliant

REACH

Compliant

  • Description
    Part Number
  • Pin Header Connector,1.00mm Height,Gold or Tin over nickel,Black
    1310-series
  • Pin Header Connector,1.50mm Height,Gold or Tin over nickel,Black
    1315-series
  • Pin Header Connector,2.00mm Height,Gold or Tin over nickel,Black
    1320-series
  • Box Header Connector,5.70mm Height,Gold or Tin over nickel,Black
    3131-series
  • Box Header Connector,7.30mm Height,Gold or Tin over nickel,Black
    3133-series
  • Box Header Connector,XXXmm Height,Gold or Tin over nickel,Black
    3100-series
