3212-XXSXXBSX1

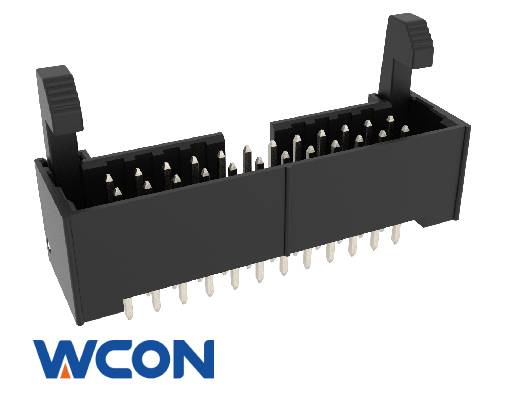

2.54mm Pitch Ejector Header Connector,Vertical,Through Hole,Short Plastic Latch,Gold or Tin over Ni,Black
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 3 AMP | Contact Material | Brass | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PBT and PA9T | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Tube,Tray | |
RoHS
Compliant
REACH
Compliant
-
