3601-SXXX-DX1MXXXX1

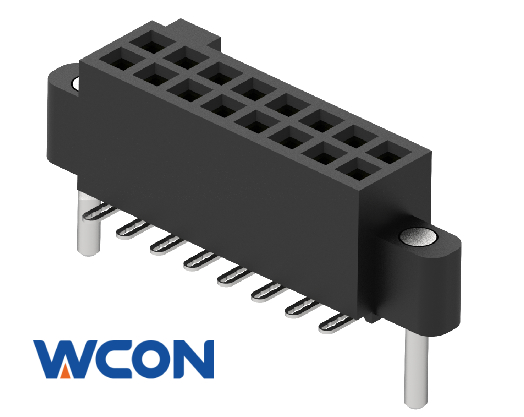

Board To Board Connector,Plug,Vertical SMT,Dual Row,Gold plating,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 250 V/AC,V/DC | Operation Temperature | -55°C - +125°C | |
| Rated Current | 3.2 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 30 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 750 V/AC,V/DC | Packaging | Reel,Tube | |
RoHS
Compliant
REACH
Compliant
