3612-PXXX-035XXR01

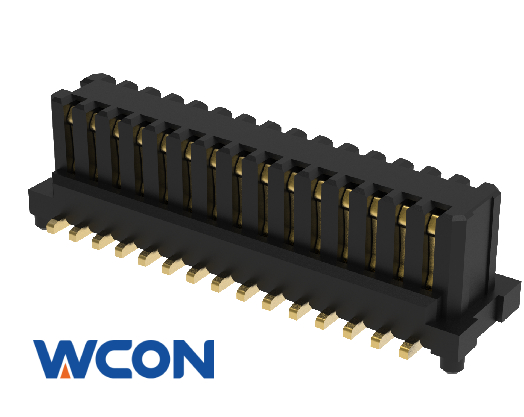

Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,xx Circuits,x.xxmm Height,xxu" Gold plating,With Post,With reinforcing metal fitting,Black
Inquiry Now Register
/assets/upload/2023-12-26/3612-PXXX-035G1R01-1.jpg/webp
2D图纸（PDF）
3D模型
包装规格
Rated Voltage 50 电压/交流，电压/直流 Operation Temperature -20C - +105°C
Rated Current 0.5 AMP Contact Material Copper Alloy
Contact Resistance 30 mΩ Max Insulator Material Thermoplastic Plastics
Insulation Resistance 100 MΩ Min Contact Plating 金,Au
Withstand Voltage 50 电压/交流，电压/直流 Packaging 卷轴，管,Reel

ROHS

complish

REACH

complish

  • Description
    Part Number
  • Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,3.65mm Height, Gold plating
    3612-SXXX-036XXR01
  • Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,4.15mm Height, Gold plating
    3612-SXXX-041G1R01
  • Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,4.70mm Height, Gold plating
    3612-SXXX-047XXR01
  • Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,5.15mm Height, Gold plating
    3612-SXXX-051XXR01
  • Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,5.65mm Height, Gold plating
    3612-SXXX-056XXR01
  • Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,6.15mm Height, Gold plating
    3612-SXXX-061XXR01
  • Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,4.70mm Height, Gold plating
    3612-SXXX-047XXR02
  • Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,4.70mm Height, Gold plating
    3612-SXXX-047XXR05
