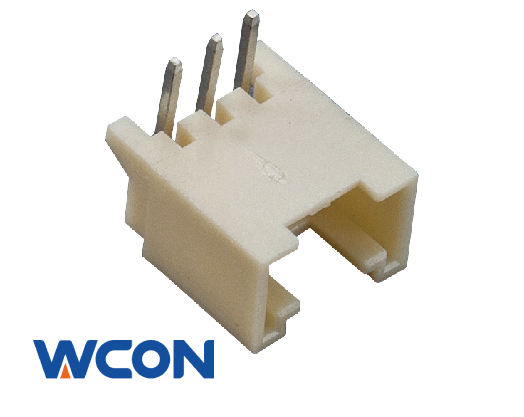

WF2005-WRXXWR1
Wire To Board Connector,Plug,R/A DIP,Surface Mount,Single Row,Tin,With reinforcing metal fitting,White
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 125 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 2 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 20 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 500 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 1000 V/AC | Packaging | Tube,Reel | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
Wire To Board Connector,Female,Single Row
