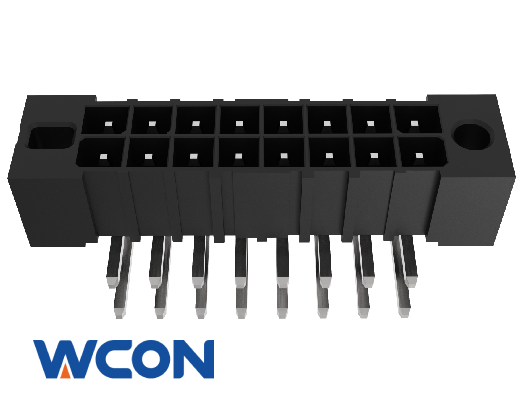

WF4191D-2WRXXXXBX1
Wire To Board Connector,Plug,R/A DIP,Double Row,With positioning,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 400 V/DC,V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 4.11 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 20 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 1500 V/AC,V/DC | Packaging | Tube,Reel | |
RoHS
Compliant
REACH
Compliant
