1614-22XXXXMXXXDR0X

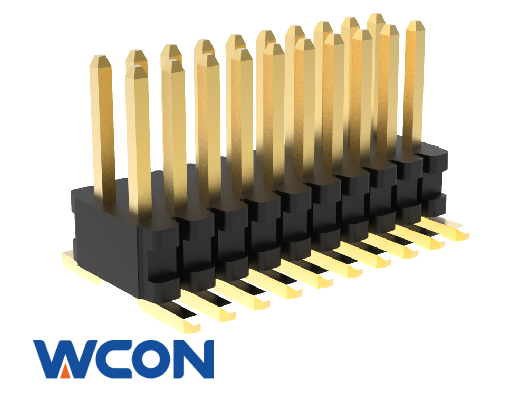

Pin Header Connector,Vertical,Surface Mount,Dual Row,Double Plastic,1.40mm Height,Gold or Tin over nickel,Without Post or With Post，Black
Quick Inquiry
| Rated Voltage | 60 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 0.75 AMP | Contact Material | Brass | |
| Contact Resistance | 30 mΩ Max | Insulator Material | LCP or PA9T | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Tube,Tray,Reel | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
Female Header Connector,Vertical,Surface Mount,3.10mm Height,Gold or Tin over nickel,Black
