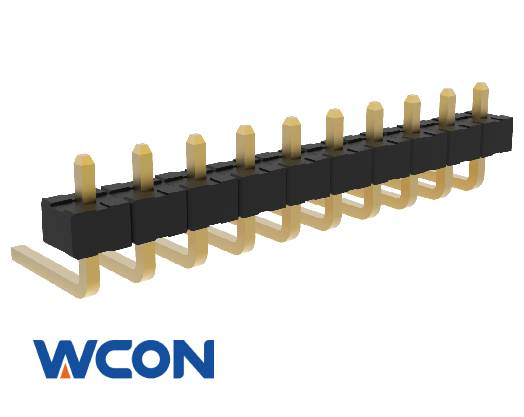

1935-11XXXXRXXXD001
Pin Header Connector,Horizontal,Through Hole,Single Row,Plane Bending,3.50mm Height,Gold or Tin over nickel,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 500 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 7 AMP | Contact Material | Brass | |
| Contact Resistance | 20 mΩ Max | Insulator Material | LCP | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 1000 V/AC | Packaging | Tube,Tray,PE Bag | |
RoHS
Compliant
REACH
Compliant
-
