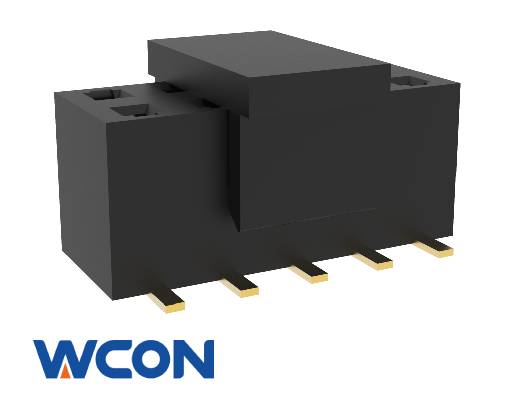

2245-2XXMXXDUNX1
Female Header Connector,Vertical,Surface Mount,Dual Row,4.45mm Height,Gold or Sn over nickel,Black
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 200 V/AC | Operation Temperature | -55°C - +125°C | |
| Rated Current | 3.9 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 20 mΩ Max | Insulator Material | LCP | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Reel | |
RoHS
Compliant
REACH
Compliant
-
