2245T-2XXMXXDUNX3

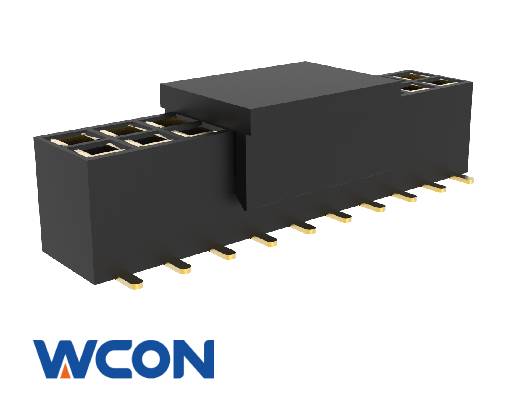

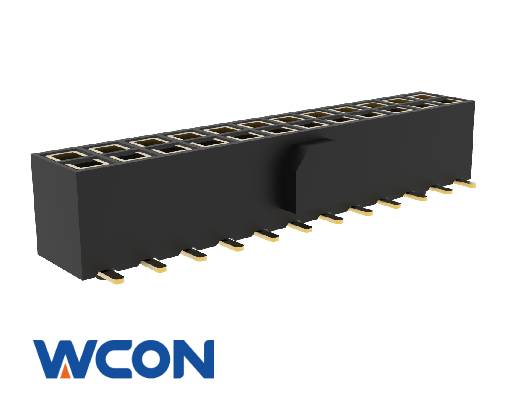

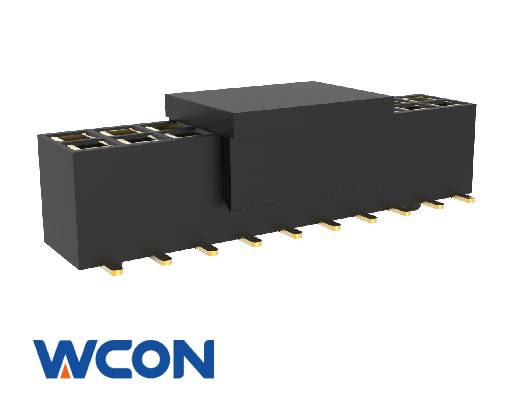

Female Header Connector,Vertical,Surface Mount,Dual Row,4.45mm Height,Top Enter,Gold or Sn over nickel,Black,With Bump,With Post
Inquiry Now Register
/assets/upload/2024-01-25/2245T-2XXMXXDUNX3.jpg/webp
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 200 V/AC Operation Temperature -40°C - +105°C
Rated Current 2 AMP Contact Material Phosphor Bronze
Contact Resistance 20 mΩ Max Insulator Material LCP
Insulation Resistance 1000 MΩ Min Contact Plating Au&Sn
Withstand Voltage 500 V/AC Packaging Tube,Reel

RoHS

Compliant

REACH

Compliant
