2272T-2XXRXXCUNX2

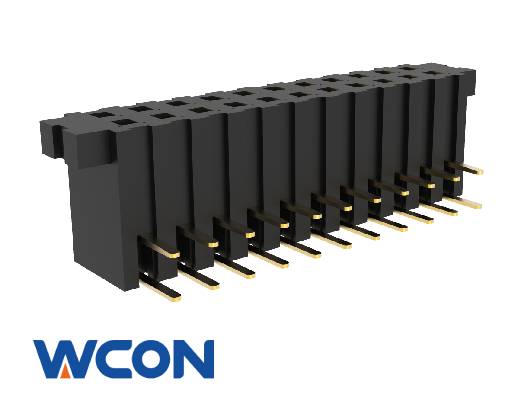

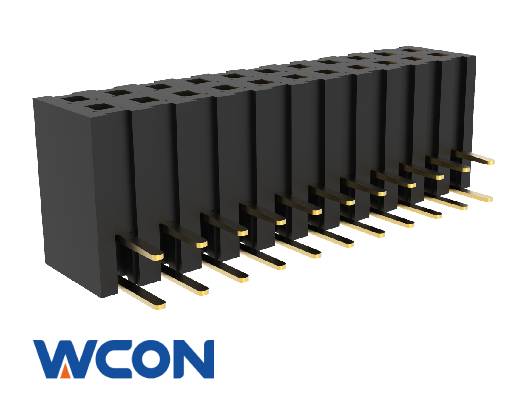

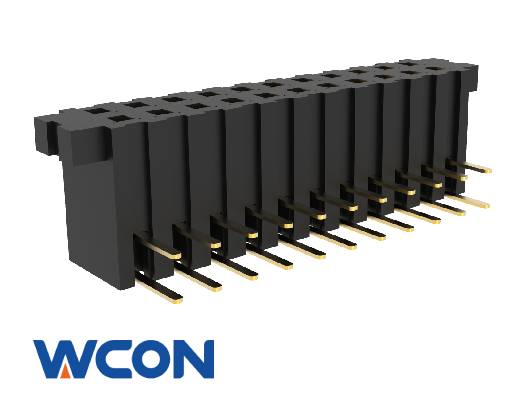

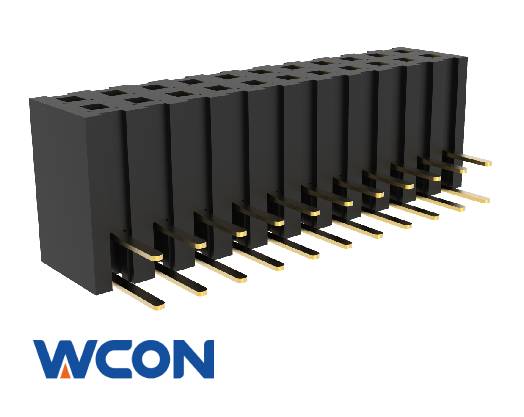

Female Header Connector,Horizontal,Through Hole,Dual Row,7.20mm Height,Gold or Sn over nickel,Black,With Plug， Type-1 or Type-2
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 200 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 2 AMP | Contact Material | Phosphor Bronze | |
| Contact Resistance | 20 mΩ Max | Insulator Material | LCP | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Tube | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
Pin Header Connector,1.50mm Height,Gold or Tin over nickel,Black
-
Pin Header Connector,2.00mm Height,Gold or Tin over nickel,Black
