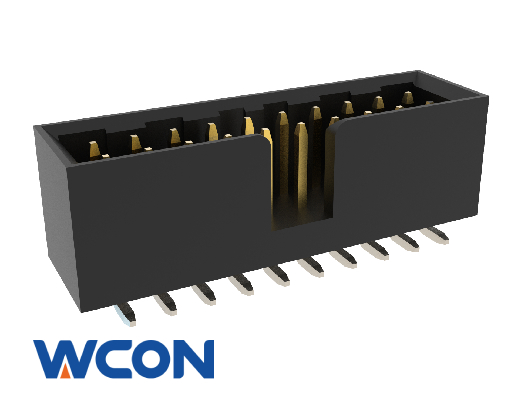

3110A-XXMXXBK00X1

2.54mm Pitch Box Header Connector,8.95mm Height,Vertical,Surface Mount,Gold or Tin over Ni,Black
Inquiry Now Register
/assets/upload/2023-12-19/3110A-XXMXXBK00X1.jpg/webp
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 250 V/AC Operation Temperature -40°C - +105°C
Rated Current 3 AMP Contact Material Brass
Contact Resistance 20 mΩ Max Insulator Material PA9T
Insulation Resistance 1000 MΩ Min Contact Plating Au&Sn
Withstand Voltage 1000 V/AC Packaging Tube,Reel

RoHS

Compliant

REACH

Compliant
