3121A-2HXXB01

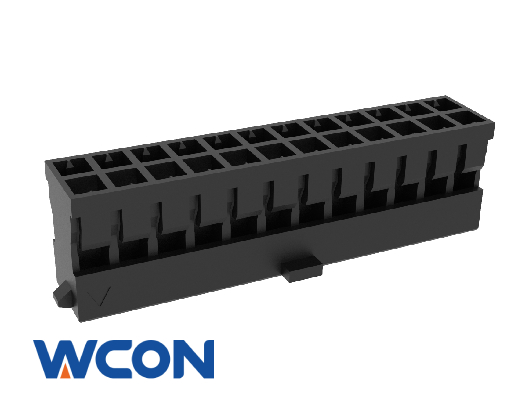

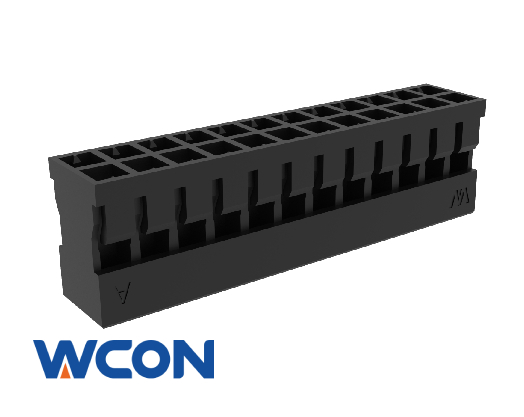

2.00mm Pitch Box Housing Connector,Double Row, Black,With Center Polarization or Ends Bump
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 2 AMP | Contact Material | Brass | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PBT | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 1000 V/AC | Packaging | PE Bag | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-

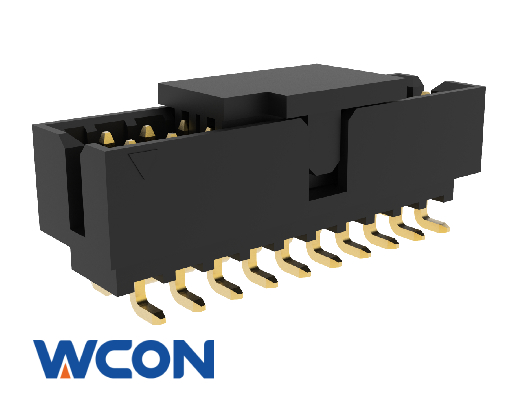

2.00mm Pitch Box Header Connector,6.40mm Height,Vertical,Surface Mount,Gold or Tin over Ni,Black, With post or Withou Post
-
2.00mm Pitch Box Header Connector,6.40mm Height,Horizontal,Through Hole,Gold or Tin over Ni,Black
-

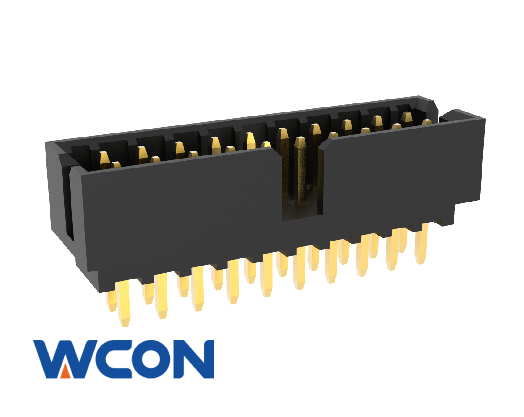

2.00mm Pitch Box Header Connector,6.40mm Height,Vertical,Through Hole,Gold or Tin over Ni,Black
