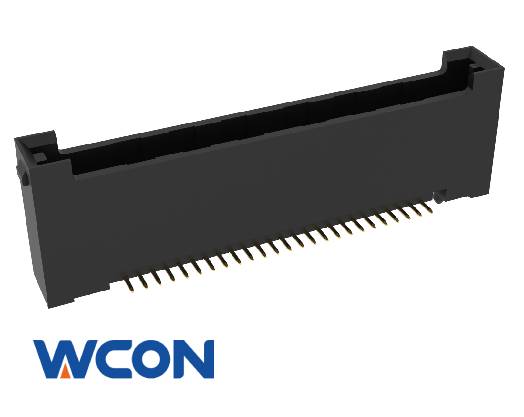

3134-50MXXBK00X2
1.27mm Pitch Box Header Connector,Male,14.00mm Height,50 Circuits,Vertical,Surface Mount,Round Pin,With Post,Gold or Tin over Ni,Black
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 100 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 1 AMP | Contact Material | Brass | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PA6T | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Tube,Reel,Tray | |
RoHS
Compliant
REACH
Compliant
-
