3211-XXMXXBLX1

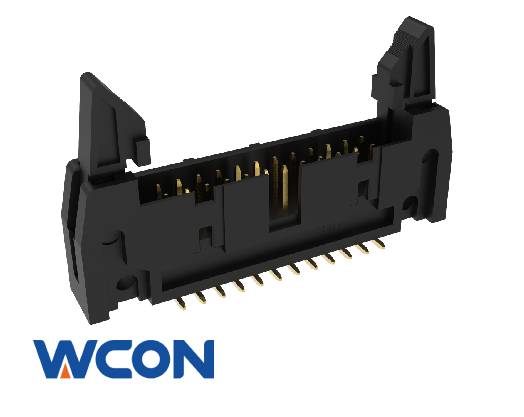

2.54mm Pitch Ejector Header Connector,Vertical,Surface Mount,Long Metal Latch,Gold or Tin over Ni
Inquiry Now Register
/assets/upload/2024-01-20/3210-XXMXXBLX1-1.jpg/webp
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 250 V/AC Operation Temperature -40°C - +105°C
Rated Current 3 AMP Contact Material Brass
Contact Resistance 20 mΩ Max Insulator Material PA9T
Insulation Resistance 1000 MΩ Min Contact Plating Au&Sn
Withstand Voltage 1000 V/AC Packaging Tube

RoHS

Compliant

REACH

Compliant

  • Description
    Part Number
  • 2.54mm Pitch IDC Socket Connector,Gold or Tin over Ni,Black
    5211-XXDBXXBW01
  • 2.54mm Pitch IDC Socket Connector,Gold or Tin over Ni,Black
    5212-series
