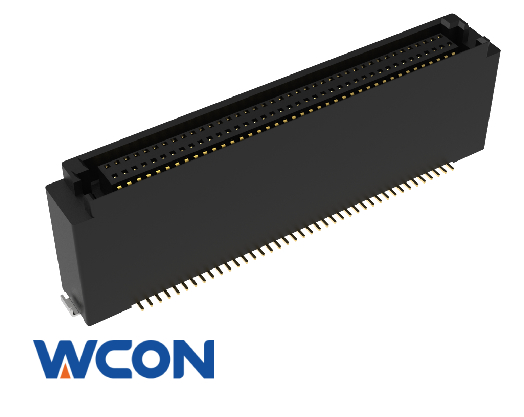

3615-SXXX-125XXX01
Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,12.55mm Height, Gold plating,With reinforcing metal fitting,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 200 V /AC V /DC,V/AC,V/DC | Operation Temperature | -40°C - +85°C | |
| Rated Current | 0.5 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 70 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 100 MΩ Min | Contact Plating | Au | |
| Withstand Voltage | 500 V /AC V /DC,V/AC,V/DC | Packaging | Tube,Reel | |
ROSH
Compliant
REACH
Compliant
-
DescriptionPart Number
-
Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,4.75mm Height,Gold plating
-
Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,5.75mm Height,Gold plating
-
Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,7.75mm Height,Gold plating
