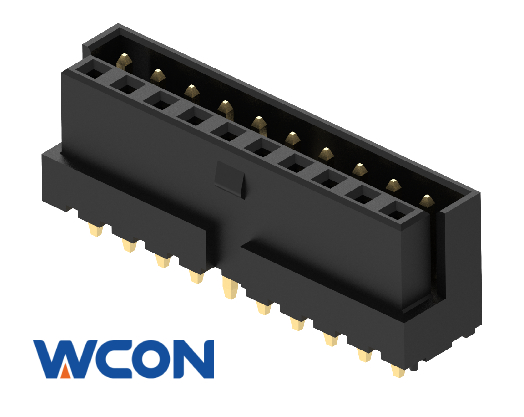

3701-AXXX-XXXSXXX01

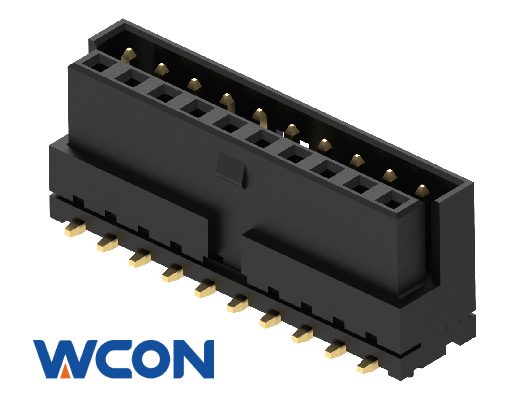

Board To Board Connector,Male and female,Vertical SMT,Surface Mount,Dual Row，Gold plating,With Post,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 200 V/AC | Operation Temperature | -55°C - +125°C | |
| Rated Current | 3.2 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 20 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au | |
| Withstand Voltage | 500 V/AC | Packaging | Tube,Reel | |
ROHS
Compliant
REACH
Compliant
