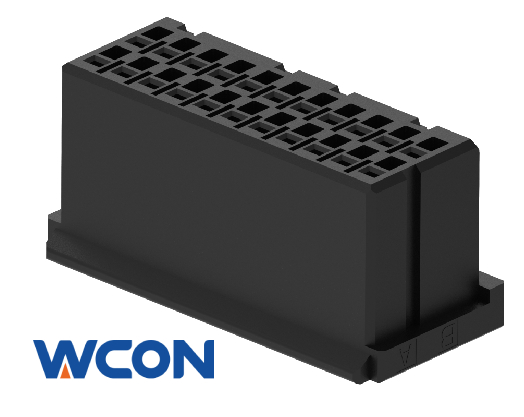

WD2000-2HXXX0X(W)

Wire To Board Connector,Housing,Double Row,Black
Inquiry Now Register
/assets/upload/2023-12-20/WD2000-2H11B001.jpg/webp
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 125 V/AC Operation Temperature -40°C - +125°C
Rated Current 3 AMP Contact Material Copper Alloy
Contact Resistance 20 mΩ Max Insulator Material Thermoplastic Plastics
Insulation Resistance 100 MΩ Min Contact Plating Sn
Withstand Voltage 1000 V/AC,V/DC Packaging PE Bag

ROHS

Compliant

REACH

Compliant

  • Description
    Part Number

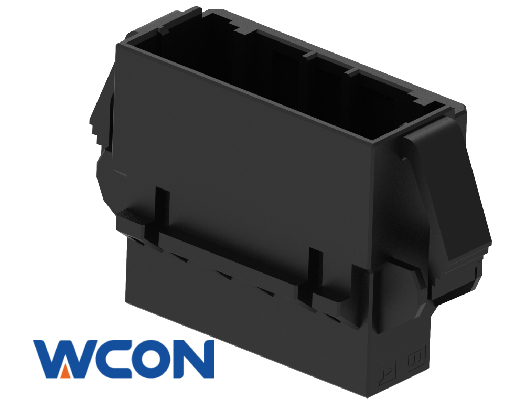

  • Wire To Wire Connector,Housing,Panel Housing,Double Row,Black
    WD2000-2HGXXX0X(W)

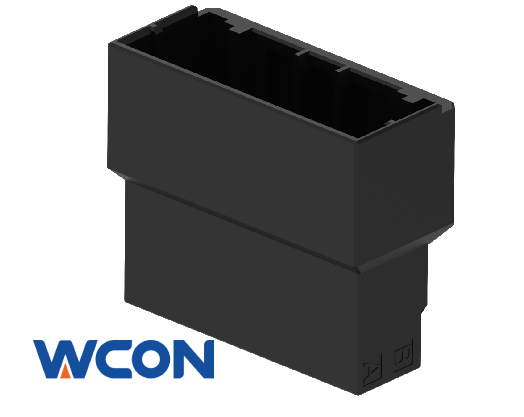

  • Wire To Wire Connector,Housing,Housing for Male Terminals,Double Row,Black
    WD2000-2HKXXX0X(W)
  • Female terminal,gold plated or tinned plated,18~30#AWG
    WD3500-3TPXXS401

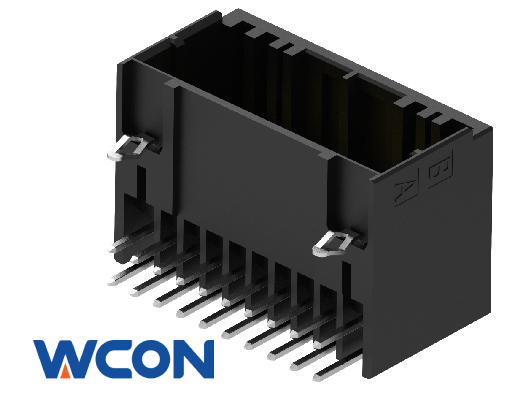

  • Wire To Board Connector,Male,R/A DIP,Double Row,With reinforcing metal fitting,Black
    WD2000-2WRXXXXBTXX(W)
  • Wire To Board Connector,Male,Vertical DIP,Double Row,With reinforcing metal fitting,Black
    WD2000-2WSXXXXXTXX(W)
