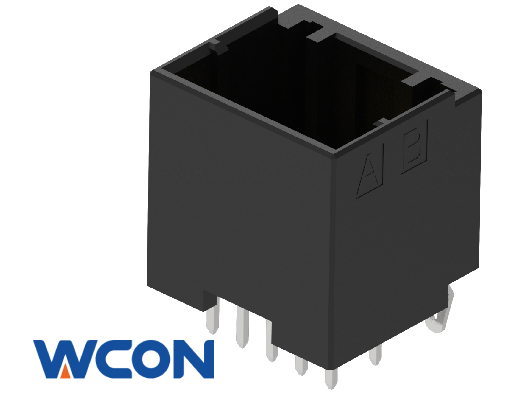

WD2000-2WSXXXXXTXX(W)
Wire To Board Connector,Male,Vertical DIP,Double Row,With reinforcing metal fitting,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 125 V/AC | Operation Temperature | -40°C - +125°C | |
| Rated Current | 3 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 20 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 100 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 1000 V/AC,V/DC | Packaging | PE Bag | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
Wire To Board Connector,Housing,Double Row,Black
