WF2010-1WMHXXR01
Wire To Board Connector,Plug,Vertical SMT,Single Row,Black
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 250 V/AC,V/DC | Operation Temperature | -40°C - +125°C | |
| Rated Current | 4.7 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 20 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 500 V/AC,V/DC | Packaging | Tube,Reel | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-

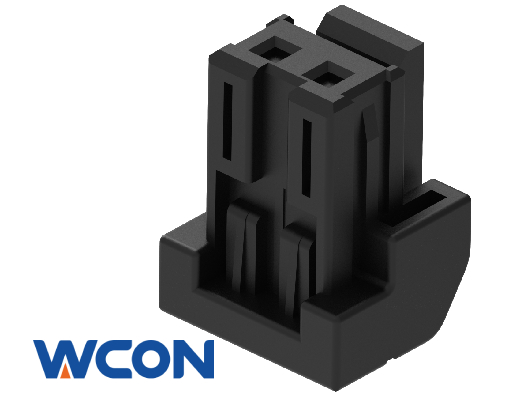

Wire To Board Connector,Housing,Single Row
