WF2018-WSHXXE0X
Wire To Board Connector,Male,Single Row,Vertical DIP,White
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -45°C - +105°C | |
| Rated Current | 3 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 20 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 800 V/AC | Packaging | Reel | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-

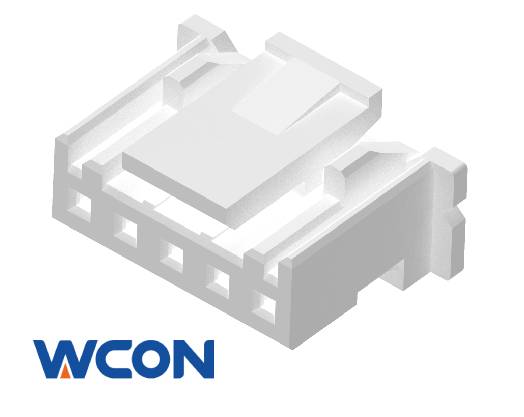

Wire To Board Connector,Housing,Single Row
