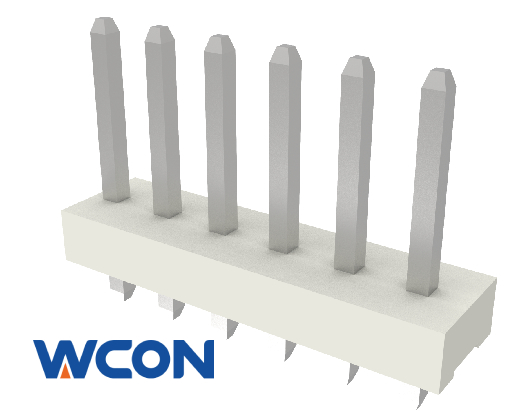

WF3962-WSXXSXW0X
Wire To Board Connector,Plug,Vertical DIP,Surface Mount,Single Row,White
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 7 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 20 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 1500 V/AC,V/DC | Packaging | PE Bag | |
ROHS
Compliant
REACH
Compliant
-
DescriptionPart Number
